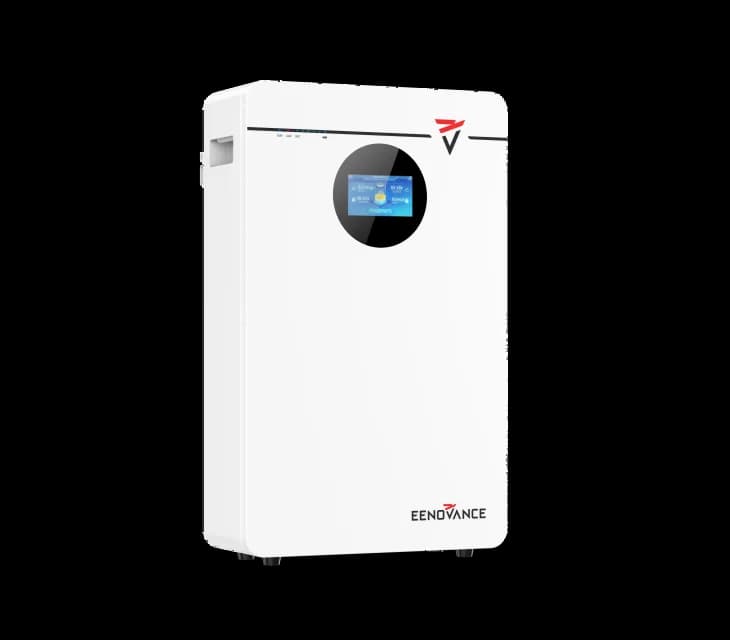

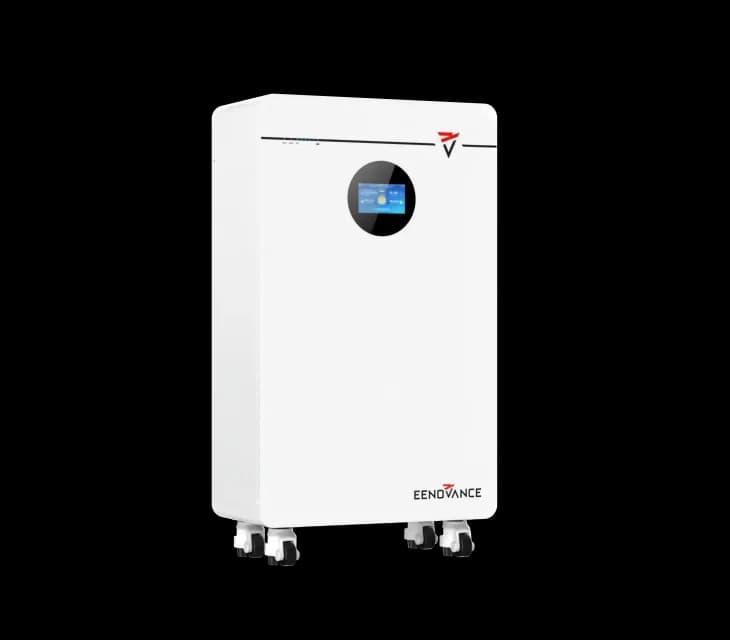

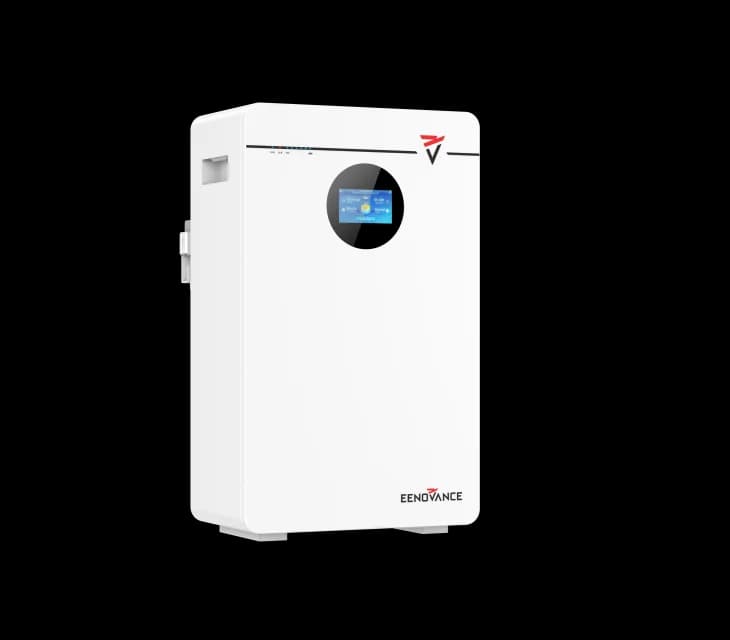

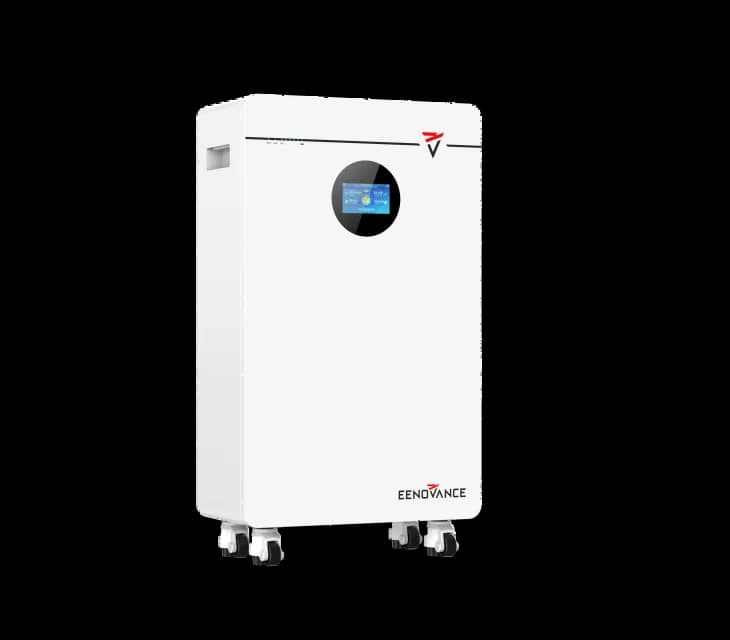

EENOVANCE MANA-M Series | 5.12 kWh / 10.24 kWh / 16.07 kWh / 20.07 kWh
MANA-M Series is a low-voltage residential energy storage solution built for easy expansion and smart energy management. With one-touch parallel scaling, the system can be flexibly expanded up to 15 batteries in parallel, allowing capacity to grow seamlessly as household energy needs increase. Combined with intelligent control and remote app management, MANA-M Series offers a simple, scalable, and user-friendly way to power modern homes. Compliance: UN38.3 / IEC62619/ IEC61000 etc.
| Cell technology | LFP ( LiFePO4) |
|---|---|
| Battery usable energy | 5.12 kWh/ 10.49 kWh/ 16.07 kWh/ 20.07 kWh |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8 ~ 56.16 V |
Технически параметри
Cell technologyLFP ( LiFePO4)
Battery usable energy5.12 kWh/ 10.49 kWh/ 16.07 kWh/ 20.07 kWh
Nominal voltage51.2 V
Operating voltage44.8 ~ 56.16 V
Max. charge and discharge current100A/ 200 A/ 200A / 200A
Тегло:47 Kg/ 82 kg/ 122 kg/ 145 kg
Dimension (W×D×H)390×160×643 mm/ 420×245×706 mm/ 485×245×785 mm/ 500 × 270 × 892 mm
Ingress protectionIP20
Warranty period5 years / 10 years（Optional）
ComplianceUN38.3 / IEC62619/ IEC61000 (More available upon request)
