Батерии за съхранениеREF: MANA-P Series

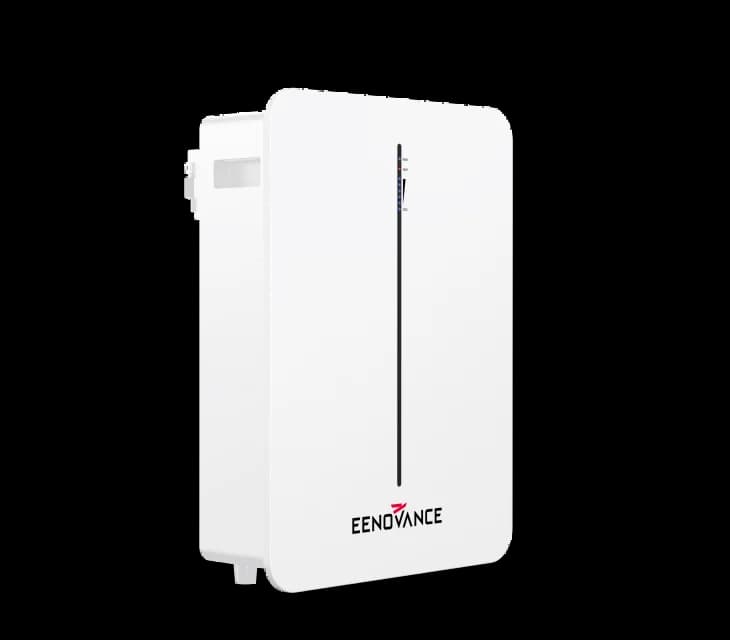

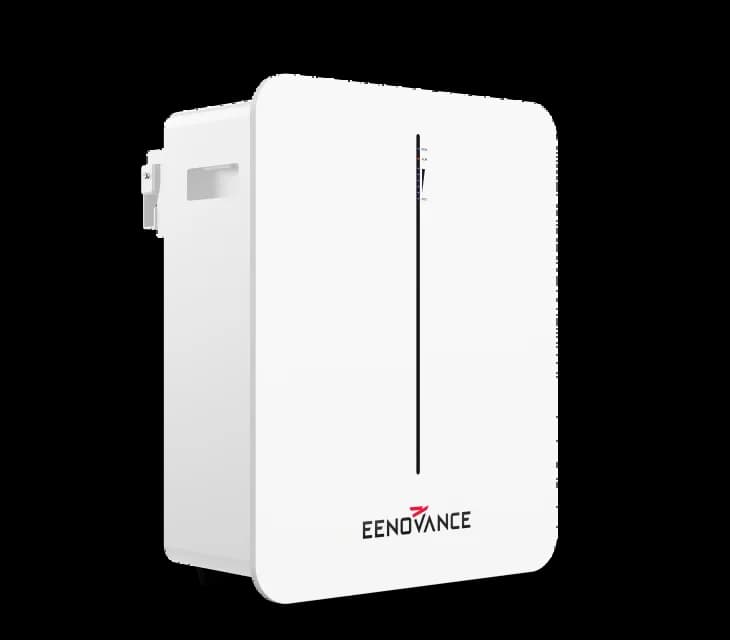

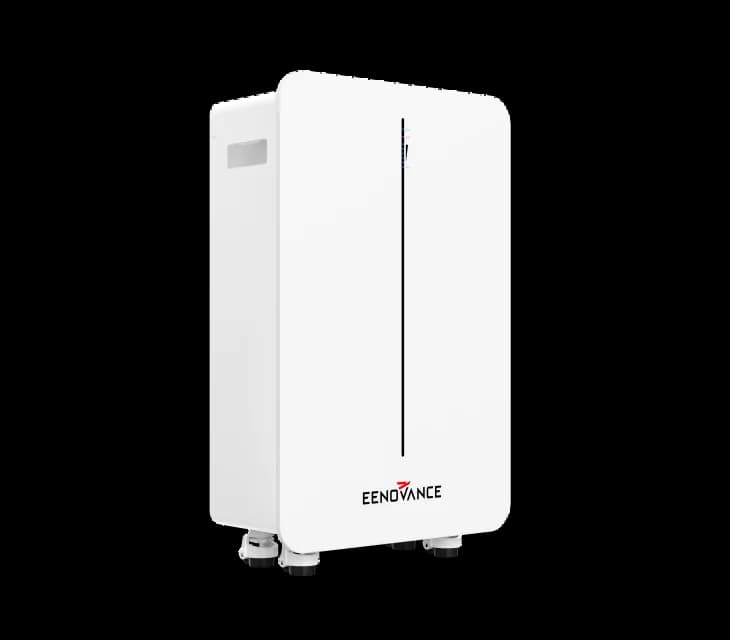

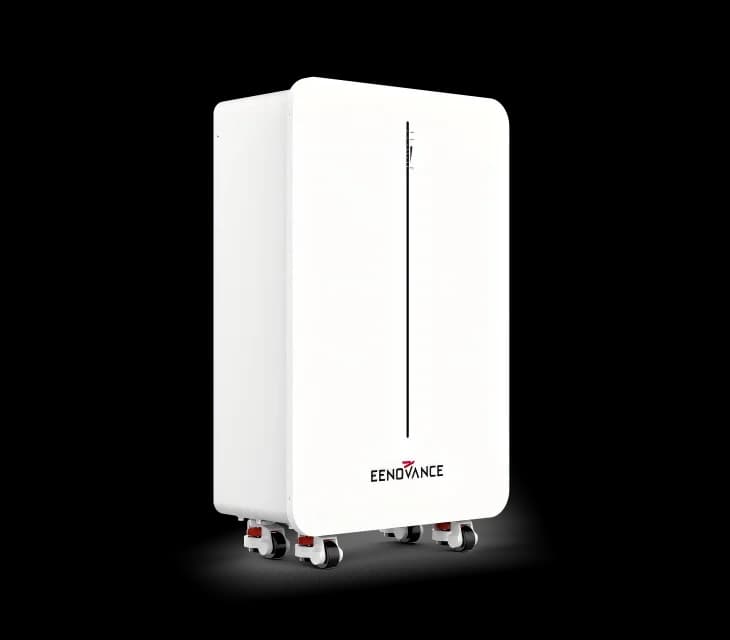

EENOVANCE MANA-P Series | 5.12 kWh / 10.49 kWh / 16.07 kWh / 20.07 kWh
MANA-P Series model is a low-voltage residential energy storage system suitable for both indoor and outdoor installation. With an IP65-rated enclosure, it delivers reliable operation in dust and water exposed environments. Each unit offers 5.12–20.07 kWh of usable energy and supports up to 15 batteries in parallel, enabling system expansion to 301.05 kWh. Compliance: UN38.3 / IEC62619 / IEC61000 / IEC62040-1 / FCC / UL1973 / UL9540A etc.
| Cell technology | LFP ( LiFePO4) |
|---|---|
| Battery usable energy | 5.12 kWh / 10.49 kWh / 16.07 kWh / 20.07 kWh |
| Nominal capacity | 100 Ah/ 205 Ah/ 314 Ah / 392 Ah |
| Nominal voltage | 51.2 V |
Технически параметри
Cell technologyLFP ( LiFePO4)
Battery usable energy5.12 kWh / 10.49 kWh / 16.07 kWh / 20.07 kWh
Nominal capacity100 Ah/ 205 Ah/ 314 Ah / 392 Ah
Nominal voltage51.2 V
Operating voltage44.8 ~ 56.16 V
Max. charge and discharge current100A/ 200 A/ 200A/ 200A
Dimension (W×D×H)470×160×635 mm/ 530×245×660mm/ 530×245×847mm/ 535×270 ×880 mm
Тегло:48.8 kg/ 88 kg/ 120 kg/ 148 kg
Ingress protectionIP65
Warranty period5 years / 10 years（Optional）
ComplianceUN38.3 / IEC62619 / IEC61000 / IEC62040-1 / FCC / UL1973 / UL9540A (More available upon request)
