EENOVANCE RT 5.12-HX | 20.48-61.44kWh | High Voltage

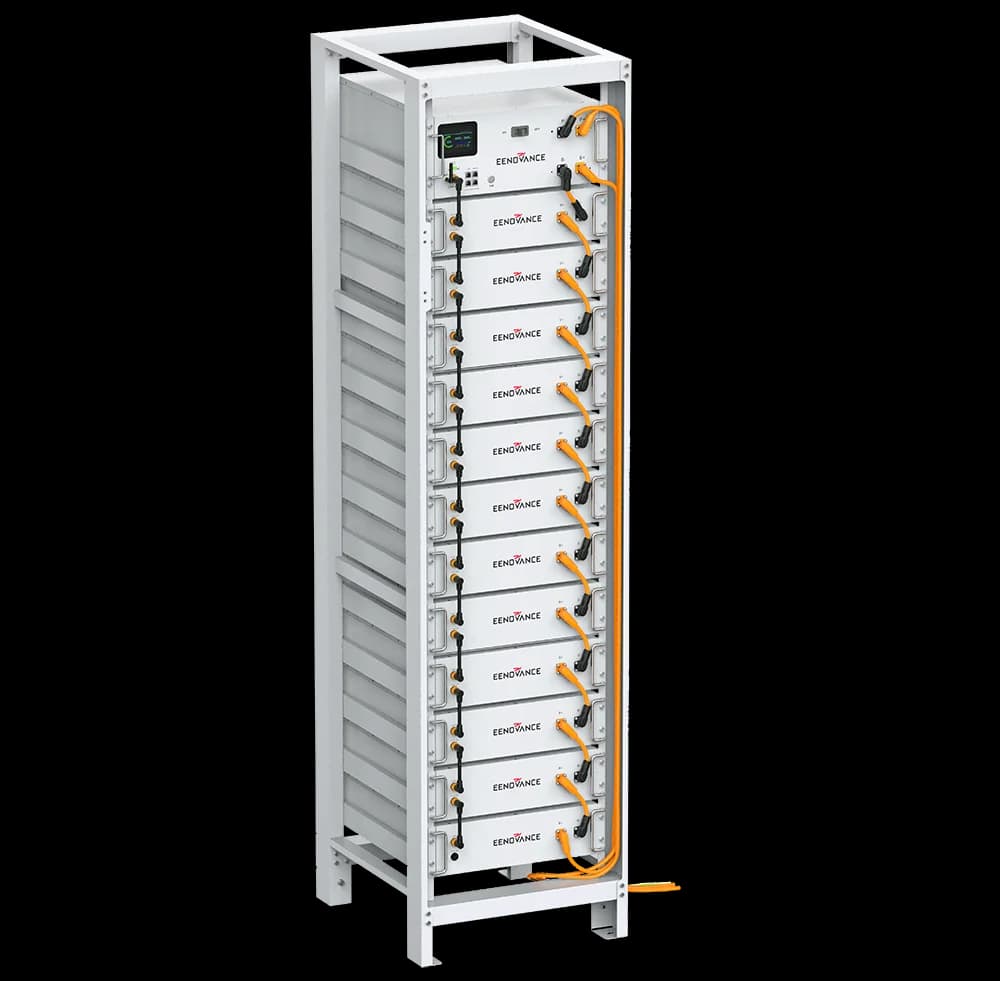

RT 5.12-HX High Voltage Battery System, a flagship product from EENOVANCE, is designed for small-scale commercial and industrial energy storage systems. With a modular capacity of 5.12 kWh, it supports up to 12 battery packs per cluster and a maximum of 4 clusters in parallel. Widely installed globally, it is highly regarded for its reliability and efficiency.
| Cell technology: | LFP (LiFePO4) |
|---|---|
| Number of modules: | 4~12 |
| Battery usable energy: | 20.48 ~ 61.44 kWh |
| Nominal voltage: | 204.8 - 614.4 V |
Технически параметри
Cell technology:LFP (LiFePO4)
Number of modules:4~12
Battery usable energy:20.48 ~ 61.44 kWh
Nominal voltage:204.8 - 614.4 V
Max. charge and discharge current:100 A
Display:SOC status indicator, LED/LCD display (Optional)
Cycle life:6000 Cycles or ten (10) years @ 80% DOD / 25°C / 0.5C, 70% EOL
Scalability:Max. 12 modules per stack, 4 stacks in parallel
Compliance:UN38.3 / IEC62619 / IEC62040-1 / IEC61000-6-2 / IEC61000-6-4 / IEC62477-1
// Системна интеграция
Поискай комплектна офертаНеобходима ли е индивидуална конфигурация?
Нашите инженери могат да оразмерят и комплектоват батерии за съхранение спрямо вашето специфично потребление и изисквания.
