✓ EENOVANCE
Индустриални BESSREF: E-MATE 50-61-A

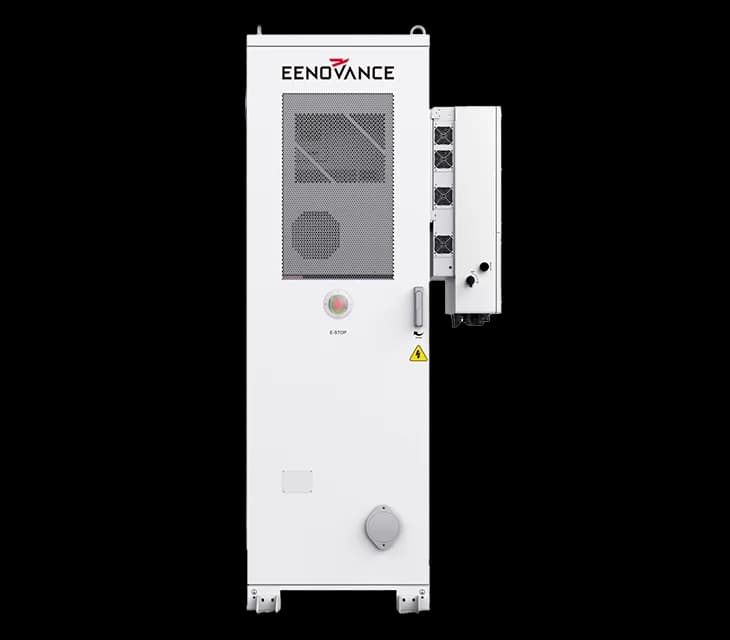

EENOVANCE E-MATE 50-61-A | Air Cooling | 50 kW / 61 kWh
E-MATE 50-61-A commercial air-cooling energy storage system offers intelligent remote monitoring and robust safety features. Its integrated design simplifies installation, while flexible expansion options and multi-scenario support make it a reliable and scalable solution for commercial energy storage needs. Certification： UN38.3/UN3480/IEC62619/IEC6100-6-2/IEC62477-1/CQC etc.
| Cell technology | LFP-3.2 V / 100 Ah |
|---|---|
| Battery pack | 5.12 kWh, 51.2 V |
| Number of packs | 61.44 kWh |
| Rated voltage | 614.4 V |
Технически параметри
Cell technologyLFP-3.2 V / 100 Ah
Battery pack5.12 kWh, 51.2 V
Number of packs61.44 kWh
Rated voltage614.4 V
Rated current80 A
Voltage range480 V ~ 700.8 V
Charge / discharge rate0.8P
Cycle life6000 cycles (25±2°C, 0.5P / 0.5P, 70% SOH)
Rated output power50 kW
Rated grid voltage3L / N / PE220 / 380, 230 / 400Vac
Maximum output current76A
PV side voltage range150 V - 850 V (full power above 500 V)
MPPT quantity4
FirefightingAerosol: module-level (optional) + stack-level, water firefighting, combustible gas detection and exhaust
ComplianceUN38.3 / UN3480 / IEC62619 / IEC61000 / IEC62477-1 / CQC
// Системна интеграция
Поискай комплектна офертаНеобходима ли е индивидуална конфигурация?
Нашите инженери могат да оразмерят и комплектоват индустриални bess спрямо вашето специфично потребление и изисквания.
