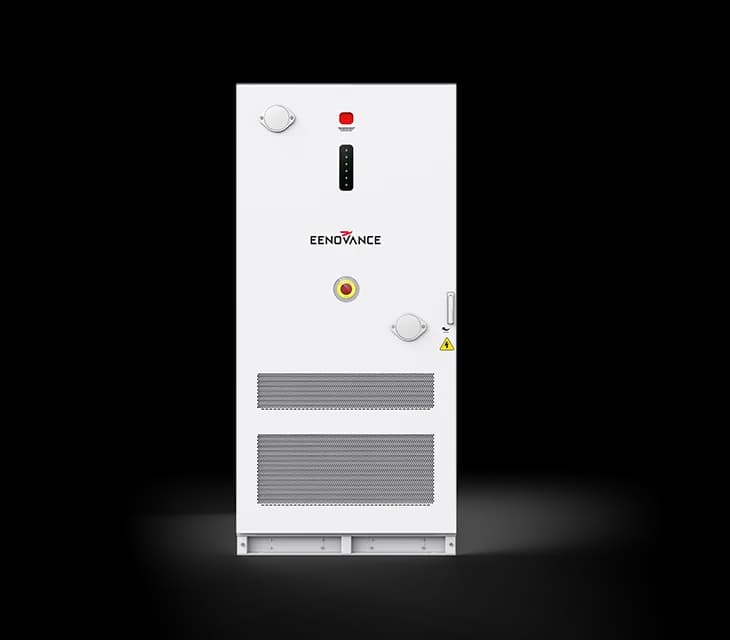

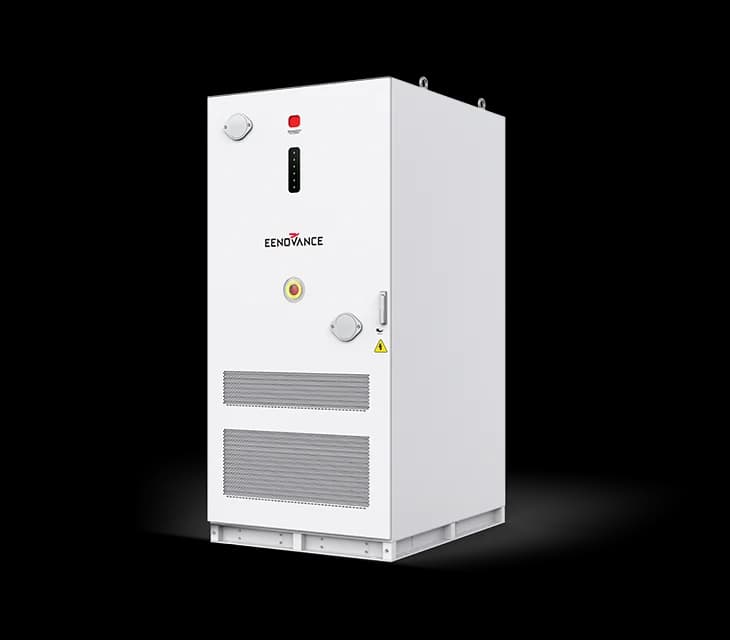

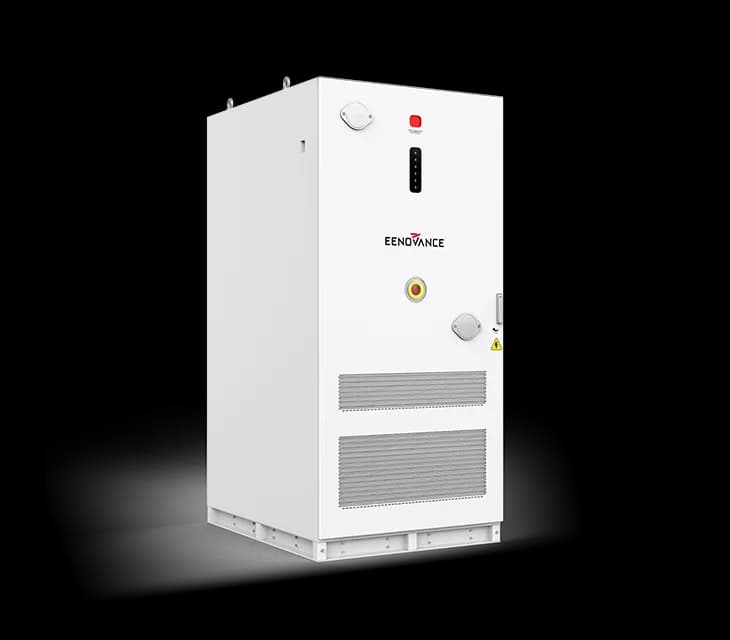

EENOVANCE E-MATE 125-261-L | 125kW/261kWh | Liquid Cooling ESS
E-MATE 125-261-L is a fully integrated AC-coupled energy storage system combining a 125 kW PCS with a 261.25 kWh modular liquid-cooled LFP battery. Designed for commercial and industrial on-grid applications, it enables efficient energy storage, peak shaving, and seamless PV integration.Its liquid-cooled architecture ensures stable performance and extended service life, while high conversion efficiency and fast response deliver reliable power support. With multi-level safety protection and intelligent EMS control, the system provides secure, smart, and scalable energy management for modern C&I environments.
| Cell technology: | LFP-3.2 V / 314 Ah |
|---|---|
| Battery system rated capacity | 261.25 kWh |
| Battery system voltage range: | 728 V ~ 936 V |
| Battery system charge / discharge rate: | 0.5 P |
Технически параметри
Cell technology:LFP-3.2 V / 314 Ah
Battery system rated capacity261.25 kWh
Battery system voltage range:728 V ~ 936 V
Battery system charge / discharge rate:0.5 P
Cycle life:8000 cylces (25±2°C,0.5P/0.5P, 70% SOH)
AC side rated output power:125 kW
AC side rated voltage:400V±15%
AC side rated output current:180 A
Ingress protection:IP55
PCS maximum efficiency:98.5%
AC side charge/discharge switching time:< 100ms
Dimension (W×D×H)1100×1424×2350 mm (43.31×56.06×92.52 inch)
Тегло:2700 kg
Compliance:UL9540A (system level) / PGS 37-1 / UN38.3 / IEC62619 / IEC62477 / IEC61000 / EN18031-1 / EU / NRS097-2-1 / EN50549-1 / EN50549-2
