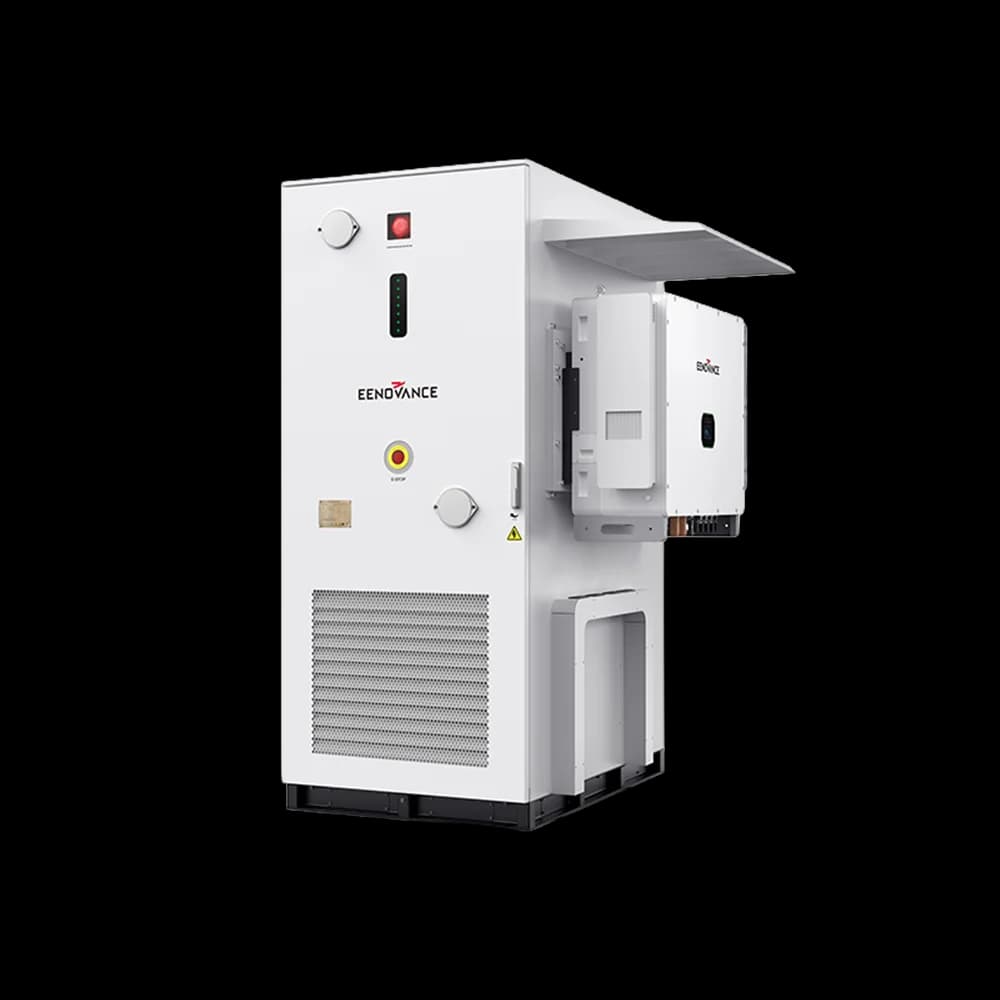

EENOVANCE E-MATE 125-261-L MAX | 261kWh / Liquid Cooling ESS
The E-MATE 125-261-L MAX is a fully integrated outdoor energy storage system for commercial and industrial applications. Combining high-performance LFP batteries, intelligent liquid cooling, multi-layer safety protection and cloud-based energy management within a factory-integrated architecture, it enables simplified deployment, reliable operation and long-term lifecycle value.
| Cell technology: | LFP-3.2 V / 314 Ah |
|---|---|
| Battery system rated capacity: | 261kWh |
| MPPT voltage range: | 150 V - 950 Vac |
| Maximum input current: | 10*42 Aac |
Технически параметри
Cell technology:LFP-3.2 V / 314 Ah
Battery system rated capacity:261kWh
MPPT voltage range:150 V - 950 Vac
Maximum input current:10*42 Aac
Battery voltage range:728 V ~ 936 V
Maximum charging/discharging current:AC191.3A
Number of battery ports:5
Size without hybrid inverter(width x height x depth):1100 × 1424 × 2350 mm
Weight(without hybrid inverter):2300 kg
Working environment temperature/humidity:-25 ~ +60°C / 0 ~ 95%
Ingress protectionIP65
Compliance:UN38.3, MSDS, IEC62619/63056/60730, IEC61000-2/-4
