✓ EENOVANCE
Индустриални BESSREF: G-Power 5016-L

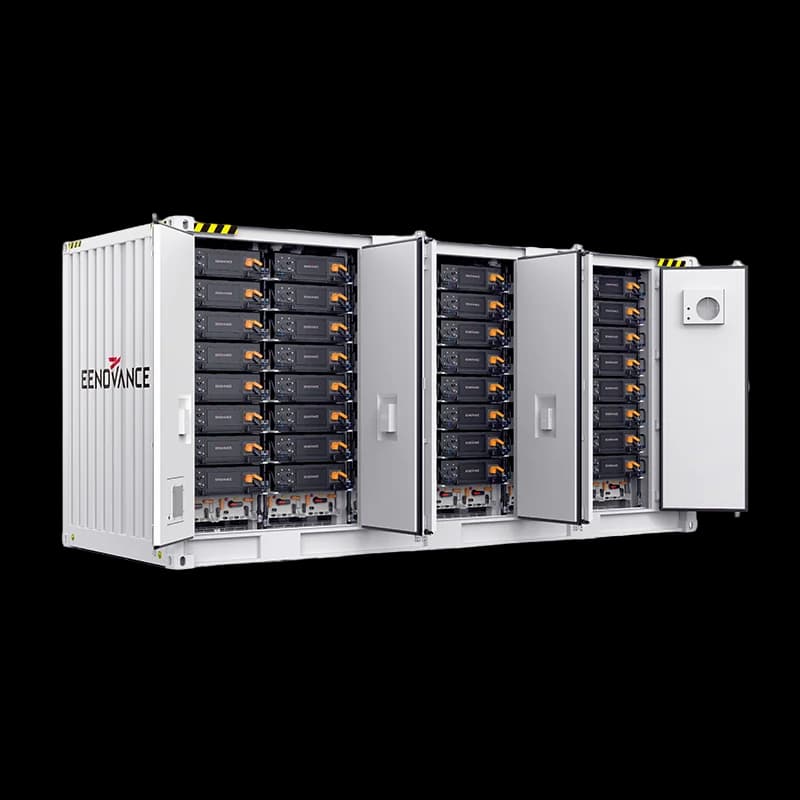

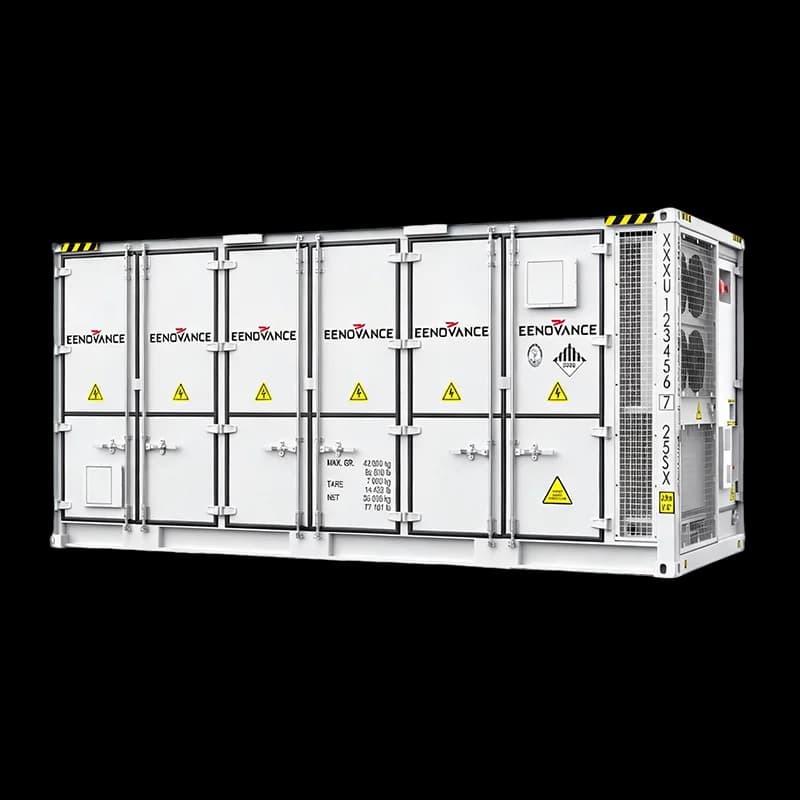

EENOVANCE G-Power 5016-L | Liquid Cooling | 5.016 MWh
G-Power 5016-L is a latest containerized battery sytem for energy storage applications of the Grid. It features a 20-foot standard container, with deep integration, safety, reliability, intelligence and high efficiency.
| Cell technology | LFP-3.2 V / 314 Ah |
|---|---|
| Rated capacity | 5.016 MWh |
| Rated voltage | 1331.2 V |
| Battery system voltage range | 1040V~1497.6V |
Технически параметри
Cell technologyLFP-3.2 V / 314 Ah
Rated capacity5.016 MWh
Rated voltage1331.2 V
Battery system voltage range1040V~1497.6V
Battery system charge / discharge rate0.5P
Cycle life8000 cycles (25±2°C, 0.5P / 0.5P, 70% SOH)
Ingress protectionIP55
Dimension (W×D×H)6058x2438x2896 mm (238.5x96x114 inch)
Тегло:40T-45T (88184.9 lbs-99208.0 lbs)
FirefightingAerosol: containerized-level, water firefighting, combustible gas detection and exhaust, explosion venting design
// Системна интеграция
Поискай комплектна офертаНеобходима ли е индивидуална конфигурация?
Нашите инженери могат да оразмерят и комплектоват индустриални bess спрямо вашето специфично потребление и изисквания.
